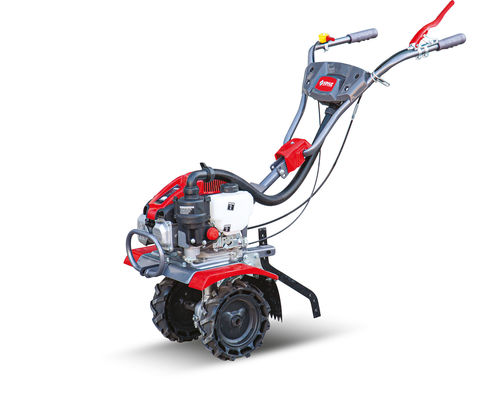

汽油机手扶机动犁 50

产品
用于翻土的手推式旋耕机，型号YAVUZ 50，配备4冲程汽油发动机和手动前进1档传动系统。

技术参数

• 序列号：Yavuz 50
• 传动：手动，前进1档
• 齿轮箱：锥齿轮和斜齿轮箱
• 作业宽度：可调 50-80 cm（带侧护盘）
• 发动机：YAVUZ 4冲程汽油发动机，139 cc
• 额定功率：4.023 HP / 3600 rpm
• 额定扭矩：1.26 Kg-M (12.4 N-m) @ 2500 rpm
• 重量：40 kg

详细规格

• Serial No: Yavuz 50
• Transmission and Diff: Manual 1 forward
• Gearbox: Conical and Bevel Gear Box
• Tiller / Working Width: Adjustable 50-80 cm (with protective side disks)
• Safety Device: Motor Stop shuts down the engine immediately
• Power Take Off: Synchronized with gear box
• Clutch: Oil bath
• Wheels: 3-50-4
• Engine: YAVUZ
• Engine Type: 4 Stroke Gasoline Engine
• Starting System: Ropc
• Cylinder Volume: 139 cc (65 x 42)
• Rated Power: 4.023 HP / 3600 rpm
• Rated Torque: 1.26 Kg-M (12.4 N-m) @ 2500 rpm
• Engine Oil Capacity: 0.6 lt
• Fuel Tank Capacity: 1.6 lt
• Fuel Type: Gasoline
• Air Filter: Semi-dry
• Cooling System: Air
• Ignition System: Transistor Ignition
• Weight: 40 kg
