切割农业处理生产线 VegKing

香草蔬菜

Présentation

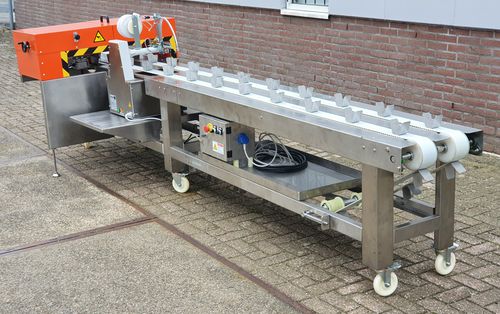

The VegKing is an affordable, reliable processing line designed for bundling, labelling and trimming leafy vegetables and herbs. It integrates an elastic binder (Cyklop AXRO) to apply an elastic band automatically around product bundles, with adjustable tension and multiple elastic types and colours available. Bundles can be labelled and/or cut as part of the line.

Fonctions principales

• Automatic elastic bundling using Cyklop AXRO elastic binder.
• Optional automatic labelling system for placing labels on bundles.
• Optional trimming/saw blade for shortening bundles.
• Modular conveyor system with two narrow conveyor belts that can be moved and product holders that can be changed to process many product types.
• Infinitely adjustable conveyor belt speed and adjustable timing of the Cyklop AXRO binder.
• Stainless steel frame and food-grade conveyor belts designed for hygiene and durability.
• Standard and longer versions available to suit different production needs.

Produits adaptés

• Herbs and aromatics (parsley, celery, rosemary, thyme, sage, mint, bouquet garni, dill, etc.).
• Leafy vegetables and long produce: spring onions, leeks, asparagus, carrots, long beans, rhubarb.
• Soup parcels and similar bundled produce.

Processus de liaison (bundling)
When bundling with the Cyklop AXRO elastic binder: the elastic is unwound from a large roll, brought around the product or bundle, knotted and automatically cut off. Multiple types and colours of elastic are supported and tension is adjustable to match product requirements.

Options

• Automatic labelling system.
• Saw blade for shortening bundles (trimming saw option).
• Extra Cyklop AXRO binder for performing 2 bindings in sequence.

Caractéristiques / spécifications techniques

• Denomination: VegKing processing and bundling line.
• Construction: frame entirely of stainless steel.
• Conveyor belts: food-grade belts; two narrow conveyor belts are movable and product holders are interchangeable.
• Speed control: conveyor belt speed is infinitely adjustable.
• Binder timing: timing of the Cyklop AXRO (RVS) binder is adjustable.
• Standard length: 1900 mm (suitable for 2 persons feeding).
• Productivity (standard): approx. 2,500 bundles per hour with two operators.
• Productivity (longer version): up to approx. 4,000 bundles per hour.
• Bundling method: elastic band from roll, applied, knotted and cut automatically.
• Available options: automatic labelling system, trimming saw, extra AXRO binder for double bindings.
