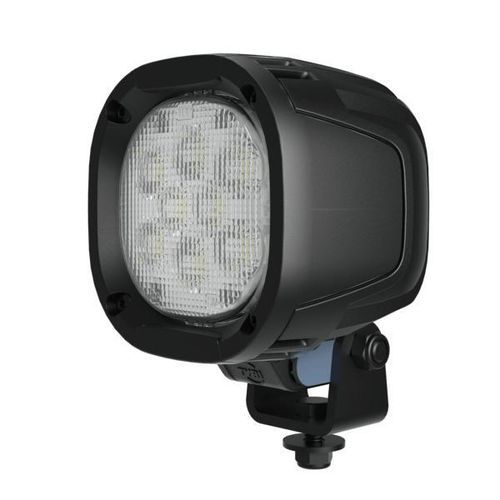

LED探照灯 1010 ECO PWR

农用车重型应用

Overview
TYRI 1010 ECO PWR 是为需要高光输出且能耗低的 OEM 设计的 LED 工作灯。它在 52 W（12–24 V）功率下输出 6000 流明，体积紧凑，可降低机器的燃料和能耗，属于 GREEN by TYRI 可持续发展计划的一部分。优化后的光学设计减少了杂散光，产生更干净、更可控的光束，提升机器表面的对比度并减少眩光与反光。
内置减振装置可保护灯具免受持续冲击和重载使用，适用于严苛工况，有助于减少非计划停机。

Product Details
Light Source: LED
Mounting: Hanging, Standing, Pedestal
Sector: Agriculture, Commercial Vehicles, Construction, Container Handling, Cranes, Emergency Vehicles, Forestry, Forklift, Marine, Material Handling, Military, Mining, Municipal Vehicles, Off-Road, On Road, Port Material Handling, Snow Clearing, Truck & Trailer, Vehicles
UL Certification: No

Variants / Available Options
Effective Lumen: 6000
Machine Voltage: 12-24 V
Amp Draw (12 V): 3.8 A
Amp Draw (24 V): 1.8 A
Power: 52 W
Colour Temperature: 5700 K
Lens Pattern: Medium Symmetric; Wide Symmetric; Wide Asymmetric; High Beam; Spot; Fog
Part no.: -
EMC: 5
ECE: -
CO2: 6.62 kg

Specifications / Technical features

• Model: 1010 ECO PWR
• Effective lumen output: 6000 lm
• Power consumption: 52 W
• Machine voltage: 12-24 V
• Amp draw: 3.8 A (12 V) / 1.8 A (24 V)
• Colour temperature: 5700 K
• Light source: LED
• Lens patterns available: Medium Symmetric, Wide Symmetric, Wide Asymmetric, High Beam, Spot, Fog
• Mounting options: Hanging, Standing, Pedestal
• EMC rating: 5
• UL certification: No
• CO2 footprint (product): 6.62 kg
• Design features: 优化光学以消除杂散光，提供更清晰可控的光束；内置减振装置适应重载使用
• Intended sectors: construction, mining, forestry, agriculture, port material handling, commercial vehicles and other off-road/on-road vehicle applications
• Sustainability: part of GREEN by TYRI initiative (higher efficacy lighting with reduced energy input)
